1x2 Polarization-Insensitive 980/1064nm Fused PM Fiber WDM
Product Features Product Applications
Operating on both Fast and Slow Axis PM Fiber EDFAs
Low Excess Loss Monitoring in Coherent Systems
Polarization-Insensitive Fiber Lasers
High Power Handling
Telcordia GR-1221 Compliant Test

Specifications 980/1064nm
Parameter Unit Premium A Grade
Pump Channel nm 980±5
Insertion Loss Max dB 0.7 0.9
Polarization Extinction Ratio Min dB 17 15
Isolation@ 1064±5nm Min dB 13 11
Polarization Dependent Loss Max dB 0.1 0.2
Signal Channel nm 1064±5
Insertion Loss Max dB 0.7 0.9
Polarization Extinction Ratio Min dB 17 15
Isolation@ 980±5nm Min dB 13 11
Polarization Dependent Loss Min dB 0.1 0.2
Operating Power Max W 2
Operating Temperature °C -40 to +85
Storage Temperature °C -50 to +85
Fiber Type mm S9=Ø3x76 / S10=Ø3x92 / M3=7.5x18x85

All specifications are before connectors. PER is 2dB lower and IL is 0.2dB higher after connectors.

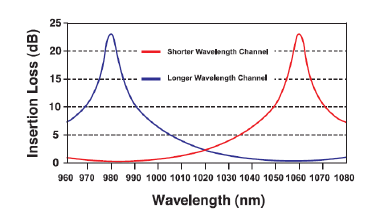

Typical Spectrum
Ordering Information
P I S W 0 0
    Wavelength
C=980/1064nm
S=Specify
Structure
1=1x2
    Grade
P=Premium
A=A grade
Package
8=S9 with
250μm bare
fiber pigtail
9=S10 with
0.9mm loose
tube
F=M3 with
3mm cable
Fiber Type
E=Panda fiber
Fiber Length
0=0.5m
1=0.75m
2=1.0m
3=1.5m
4=2.0m
S=Specify
Connector
0=None
1=FC/PC
2=FC/SPC
3=FC/APC
7=FC/UPC

Note: 1. Central Wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
3. All data are measured at central wavelength at room temperature.
